Electricity is a clean and environmentally friendly energy source. The main advantage of implementing electrical heating is lesser noise generated while operating. Homogenizing furnace using electric heater does not emit waste gas and thus does not pollute the environment. Temperature can be raised or lowered rapidly. The furnace heating source of our customer mainly selected based on the supply of the energy source in the customer's country or determined depending on the local government policy. Customer in Central Asia usually uses electric heating as the energy source of homogenizing furnace.

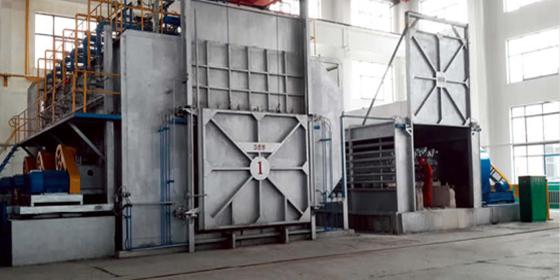

Custom-made products for previous customersIn 2015, we supplied 30 tons homogenizing furnace using electric heater to a customer from Ukraine. We contact the customer in 2018 via email and phone call and were notified that the homogenizing furnace still operates normally.
ParametersItems | Technical Parameters |
Tonnage | 30 tons |
Production | 30 tons |
Maximum operate temperature | 570℃ |
Number of controlling area | 3 |
Number of draught Fan | 3 |
Power of draught Fan | 32/42KW |
Number of nozzles | 6 |
Total power of homogenizing furnace using natural gas | 180KW |
Time taken for heating at the aluminum rod surface to achieve homogenization temperature | 4 hours |
Dimensions (Length x Width x Height) | 8300X6600X5200 |
Cooling method | Air-cooled + water-cooled |
