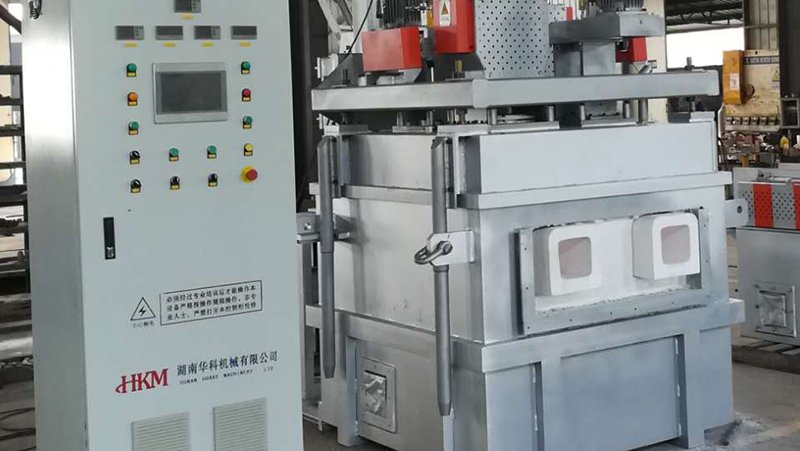

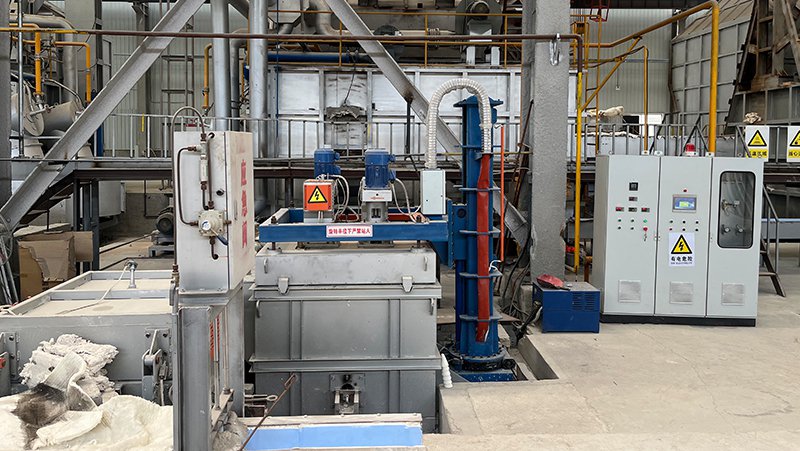

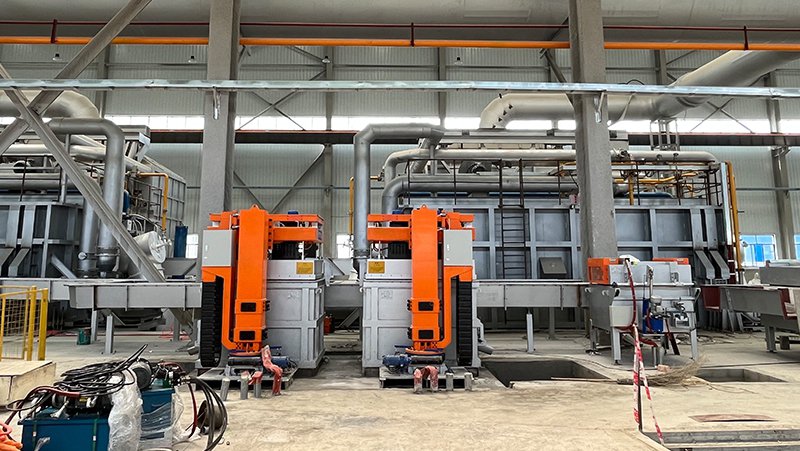

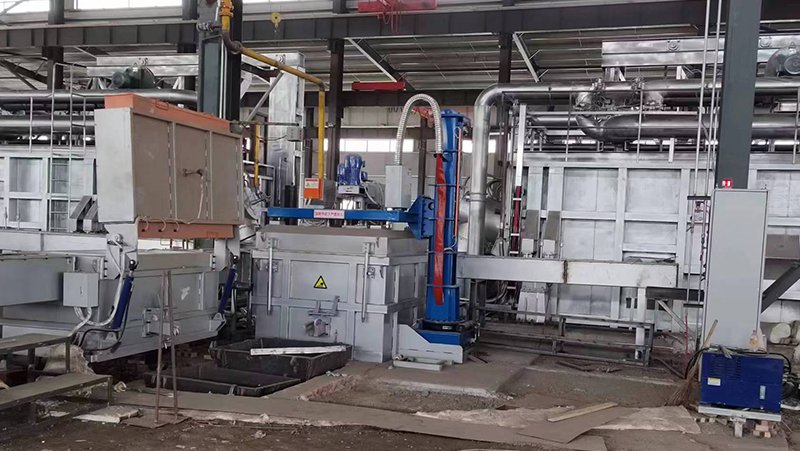

Box-Type In-Line Degassing System

•

•

•

•

• The rotor introduces argon or nitrogen into the molten aluminum and disperses the inert gas into fine, uniform bubbles through high-speed rotation.
• As the bubbles move through the melt, they capture hydrogen and non-metallic inclusions and carry them to the surface, where they are removed by skimming.
• A dual-rotor, multi-chamber design promotes more uniform gas distribution throughout the molten aluminum, improving treatment effectiveness for higher melt flow rates.

• Efficient Degassing
  The dual-rotor and multi-chamber design promotes thorough dispersion of inert gas bubbles and increases the gas-to-melt contact area. The sealed degassing box also reduces outside air ingress, helping lower the risk of secondary oxidation.
• Stable Temperature Control
  An immersion heating system maintains molten aluminum temperature during production interruptions. SCR temperature control allows the melt temperature to be adjusted as required.
• Adjustable Operation
  The inclined rotor drive provides a straightforward operating arrangement, while inert gas flow and rotor speed can be adjusted according to casting requirements.
• Convenient Maintenance
  The rotor and heater feature independent lifting and moving mechanisms for easier servicing. Dedicated plugs help reduce molten aluminum temperature loss and oxidation when the rotor or heater is removed.
